WMR

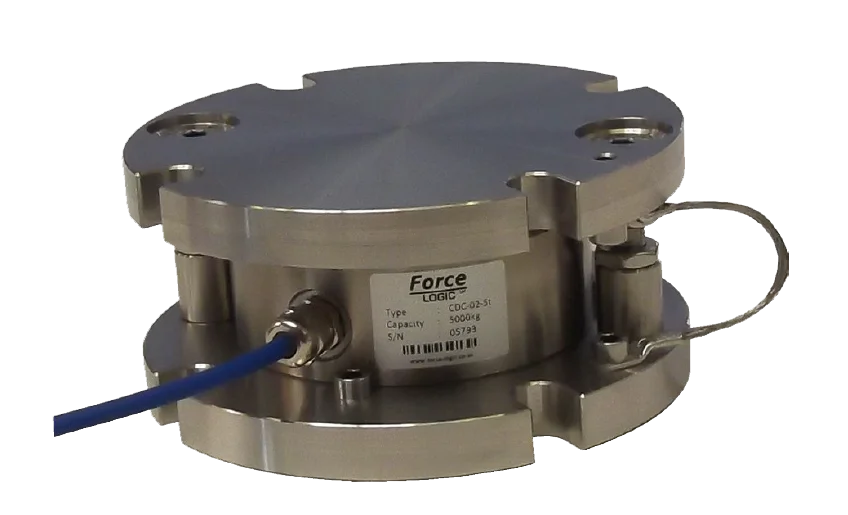

Stainless steel low profile weigh module for tank weighing. Includes self aligning top plate, integral lift-off prevention and jacking nuts for installation and replacement of load cell. Accommodates thermal expansion and contraction of the weighed structure.

WMR   WMR
Rated Capacities1 0.5 , 1 , 2.5 , 5 , 10 tonne
Full Scale Output (FSO) 2.0 (±0.25%) mV/V
Zero Output (ZO) < ± 1 % FSO
Bridge Resistance 350 (nominal) Ω
Excitation 5 to 15 V ac/dc
Non-repeatability 0.05 % FSO
Accuracy ² 0.25% FSO
Compensated temp. 0 to +50 °C
Operating temp. -10 to +70 °C
Environmental Sealing IP65 to BS EN60529
Includes CDC Series Load Cell
Capacity A B C D E
0.5 , 1 , 2.5 114 15 56 12 98
5 , 10 152 20 80 14 134
tonne mm
  • Weigh Module
  • 0.5tonne to 10tonne
  • Low Profile
  • Stainless Steel
Connections :

5 Metres 4-core Cable 2
+ Supply – Red
– Supply – Blue
+ Signal – Green
– Signal – Yellow
Overall Screen

Options :

  • Instrumentation – Weighing Indicator & Junction Box
  • System Calibration

1 Safe overload 150% Rated Capacity. Ultimate load 300% Rated Capacity.

2 Combined error, considering non-linearity & hysteresis as deviation from best straight line, from ZO to FSO.

  Correct mounting of the load cell is essential to achieve optimum performance.

3 Calibration void if cable length is altered.

The information provided is intended for product description only. Specifications are subject to change. Full product details available on request.
