INT

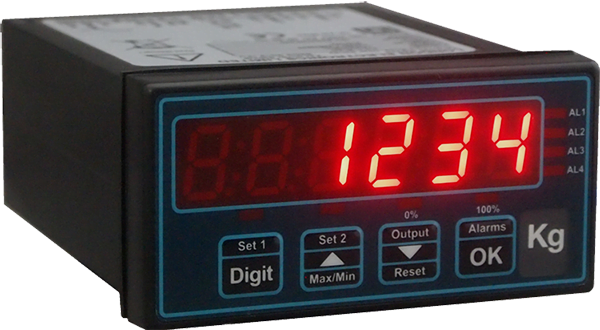

Panel mount load cell indicator with all the necessary output options and software functions to create cost effective load indicating and control systems. Simple settings without menus allow easy in-process configuration and adjustment.

INTINT

Output Options – Analogue

Output Options – Digital

Output Options – Alarms

-5 to +5 V , 0 to 10 V , 4 to 20 mA

RS232 , RS485 , DeviceNet , Modbus , Profibus

2 / 4 alarm relays rated 2A 250Vac

Input Sensitivity 0.5 – 3.5 mV/V
Power Supply 24 Vdc / 240 Vac
Excitation 10 V (120mA max.)
Power Consumption 8 W
Accuracy +/- 0.05 % of range
Environmental Sealing IP54 (mounted)
Temp. effect on span 50 ppm/°C
Temp. effect on Zero 20 ppm/°C
Size (meter only) W96 x H48 x D138 mm

Order Codes :

INT – panel meter only

INTB – mounted bench meter (all leads & connectors supplied)

Specify output options

  • Load Indicator/Controller
  • Simple menu-free operation
  • High accuracy
  • Range of output options

Options :

  • Output Options – see above
  • Can be supplied calibrated with any of our load cells
  • Can be supplied as panel meter, or mounted bench meter

The INT is a cost-effective load indicator / controller, providing local display plus a range of output options, making it suitable for all monitoring and control applications. It can be scaled in all engineering units and is easily configured using the simple menu-free operating system.

The information provided is intended for product description only.
Specifications are subject to change. Full product details available on request.
