FUSION

Large high-visibility display for indication at distance, with all the features of INT. Available as slave / repeater with or without control functions.

FUSIONFUSION

Output Options – Analogue

Output Options – Digital

-5 to +5 V , 0 to 10 V , 4 to 20 mA

RS232 , RS485 , DeviceNet , Modbus , Profibus

Input Sensitivity 0.5 – 3.5 mV/V
Power Supply 12-24 Vdc/110-240 Vac
Excitation 10 V (120mA max.)
Power Consumption 30VA max.
Accuracy +/- 0.05 % of range
Environmental Sealing IP65 (mounted)
Temp. effect on span 50 ppm/°C
Temp. effect on Zero 20 ppm/°C
Size W453 x H196 x D75 mm

Order Codes :

FUSION-AC Mains Supply (100-240V)

FUSION-DC DC Supply (12-24 V)

Specify output options

  • Load Cell Indicator
  • High Visibility 100mm Digits
  • High accuracy
  • Suitable For All Load Cells

Options :

  • Output Options – see above
  • Can be supplied calibrated with any of our load cells
  • Can be supplied as wireless option with our wireless load cells

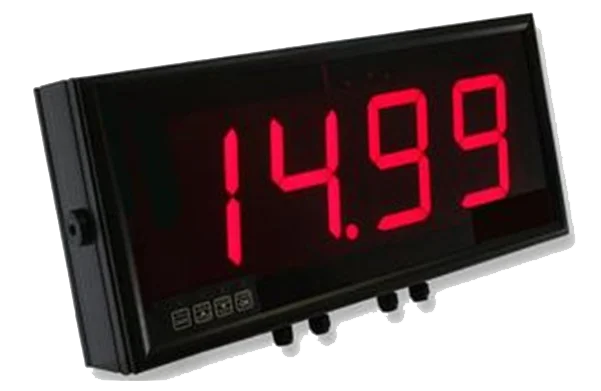

The FUSION is a large high-visibility load indicator, providing local display plus a range of output options, making it suitable for all monitoring and control applications. It can be scaled in all engineering units and is easily configured using the simple menu-free operating system. Typical applications include: crane load monitoring, factory/warehouse weighing systems, machinery overload protection. Also available with wireless option.

The information provided is intended for product description only.
Specifications are subject to change.
Full product details available on request.
