FSB

S-beam load cells combine measurement precision in both tension and compression, with simple attachment and insensitivity to off-axis forces. This makes them suitable for a huge variety of load measurement applications.

Typical applications: weighing suspended or floor mounted hoppers and tanks, materials testing machines, crane scales, force gauges, vehicle brake testing machines.

Accessories: tension and compression fittings

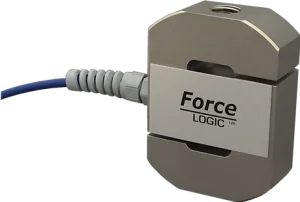

FSB S-Beam Load Cell
Rated Capacities¹25 , 50 , 100 , 250 , 500
1000 , 2500 , 5000
kg
Full Scale Output (FSO)2.5 (nominal)mV/V
Zero Output (ZO)< ± 1 %FSO
Bridge Resistance350 (nominal)Ω
Excitation5 to 15V ac/dc
Non-repeatability0.02 %FSO
Accuracy²0.05 %FSO
Compensated temp.0 to +50°C
Operating temp.-10 to +70°C
Environmental SealingIP65to BS EN60529

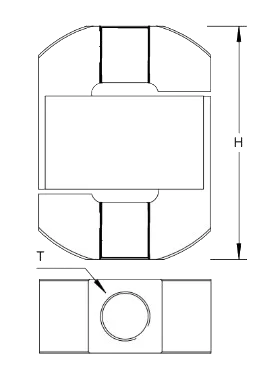

CapacityHT
25kg – 250kg70M8 x 1.5p
500kg – 1000kg70M12 x 1.75p
2500kg95M16 x 2.0p
5000kg95M24 x 2.0p
  • S-Beam Load Cell
  • 25kg to 5000kg
  • Tension & Compression
  • Stainless Steel
  • High Accuracy

Connections :

3 Metres 4-core Cable³

+ Supply     –     Red
 – Supply     –     Blue
+ Signal      –     Green
 – Signal      –     Yellow

    Overall Screen

Options :

  • Tension & compression fittings.
  • Standardised output for multiple cell systems.
  • Instrumentation / system calibration.
  • Plug & socket connection.

¹ Safe overload 150% Rated Capacity. Ultimate load 300% Rated Capacity.

² Combined error, considering non-linearity & hysteresis as deviation from best straight line, from ZO to FSO.

Correct mounting of the load cell is essential to achieve optimum performance.

³ Calibration void if cable length is altered.

The information provided is intended for product description only.
Specifications are subject to change.
Full product details available on request.
