DTC

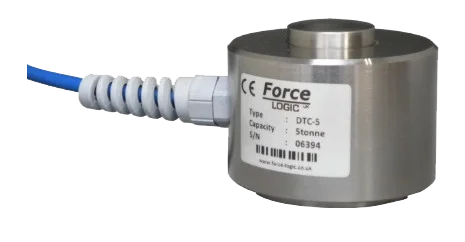

Compact compression load cells suitable for industrial weighing and static or dynamic force measurements. Rated capacities from 2tonne to 50tonne.

Typical applications: weighing vessels, press force monitoring, load balancing and centre of gravity measurement

Accessories: base plate

DTC



Rated Capacities¹ 2 , 5 , 10 , 25 , 50 tonne
Full Scale Output (FSO) 1.5 mV/V
Zero Output (ZO) < ± 1 % FSO
Bridge Resistance 700 (nominal) Ω
Excitation 5 to 15 V ac/dc
Non-repeatability 0.05 % FSO
Accuracy² 0.2 % FSO
Compensated temp. +10 to +50 °C
Operating temp. -10 to +60 °C
Environmental Sealing IP65 to BS EN60529

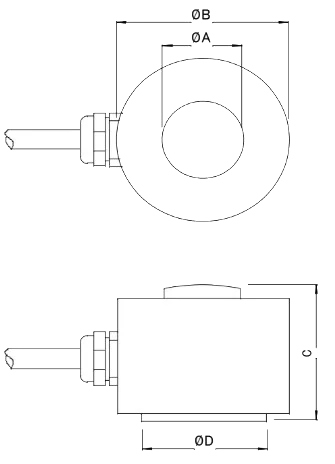

Capacity A B C D
2 20 40 38 32
5 26 50 50 40
10 35 63 62 50
25 45 75 80 63.5
50 65 100 110 88.5
  • Compression Load Cell
  • 2tonne to 50tonne
  • Compact Size
  • Stainless Steel

Connections :

3 Metres 4-core Cable³

+ Supply     –     Red
 – Supply     –     Blue
+ Signal      –     Green
 – Signal      –     Yellow

     Braided Screen

Options :

  • Base Plate
  • Standardised output for multiple cell systems
  • Instrumentation / system calibration

¹ Safe overload 150% Rated Capacity.
  Ultimate load 300% Rated Capacity.

² Combined error, considering non-linearity & hysteresis as deviation from best straight line, from ZO to FSO.

³ Calibration void if cable length is altered.

The information provided is intended for product description only.
Specifications are subject to change.
Full product details available on request.
