CDC

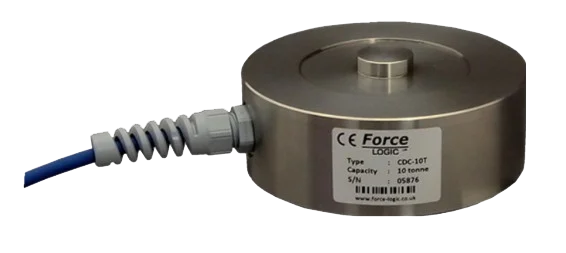

Low profile disc-type compression load cell, ideal for installations with limited headroom.
Manufactured in stainless and fully sealed, suitable for permanent installation in harsh environments.

Typical applications: weighing vessels, high capacity platform scales, press force monitoring

Accessories: WMR weigh module

CDC



Rated Capacities ¹ 0.5 , 1 , 2.5 , 5 , 10 tonne
Full Scale Output (FSO) 2.0 (±0.25%) mV/V
Zero Output (ZO) < ± 1 % FSO
Bridge Resistance 700 (nominal) Ω
Excitation 5 to 15 V ac/dc
Non-repeatability 0.05 % FSO
Accuracy ² 0.2 % FSO
Compensated temp. +10 to +50 °C
Operating temp. -10 to +60 °C
Environmental Sealing IP65 to BS EN60529

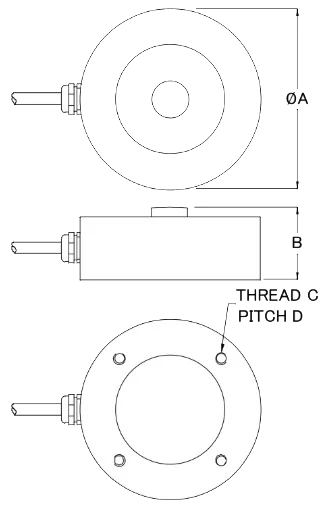

Capacity A B C D
0.5 , 1 , 2.5 63 25 M4 48
5 , 10 100 39 M6 80
  • Compression Load Cell
  • 0.5tonne to 10tonne
  • Low Profile
  • Stainless Steel

Connections :

3 Metres 4-core Cable ³

+ Supply     –     Red
 – Supply     –     Blue
+ Signal      –     Green
 – Signal      –     Yellow

     Overall Screen

Options :

  • Base Plate
  • Standardised output for multiple cell systems.
  • Instrumentation / system calibration.

¹ Safe overload 150% Rated Capacity.
  Ultimate load 300% Rated Capacity.

² Combined error, considering non-linearity & hysteresis as deviation from best straight line, from ZO to FSO.

³ Calibration void if cable length is altered.

The information provided is intended for product description only.
Specifications are subject to change.
Full product details available on request.
