LOAD-MASTER LITE

LOAD-MASTER LITE tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.
Ultra compact size and low weight relative to capacity yet retaining the same high safety factor throughout the range, rated capacities from 1tonne to 4.75tonne.
Available from stock for immediate dispatch.

LOAD-MASTER LITE load cell

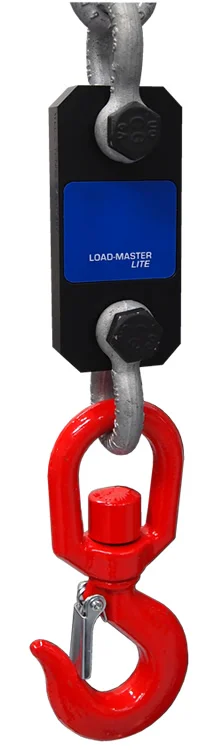

LOAD-MASTER LITE measurementscrane scale

Load Ranges 1000 , 2000 , 3250 , 4750 kg
Display Units kg (other unit on request)
Battery Life 250 Hours min. (continuous)
Wireless Range 100 Metres (line of sight)
Accuracy Class 0.25 % % Applied Load
Overload Capacity 150 % % Capacity
Safety Factor (Ultimate Load) 5 : 1
Operating temp. 0 to +50 °C
Environmental Sealing IP54 to BS EN60529
Range A B C D ØE F
1000 140 63 18.5 95 17 31
2000 140 63 18.5 95 17 31
3250 148 63 24 95 20 36
4750 148 63 27 95 24 40
  • Tension Load Cell
  • Load Ranges 1000kg to 4750kg
  • Fits standard shackle sizes
  • Cabled (LML-C) or Wireless (LML-W) Options

Includes:

LML-C: Load Cell, Display, 10M Cable, Carry Case

LML-W: Load Cell, Display, Carry Case

Display Division:
1000kg x 0.5kg
2000kg  x 1kg
3250kg x 1kg
4750kg x 1kg
Shackle Size:
1000kg 2t
2000kg 2t
3250kg 3.25t
4750kg 4.75t

(Shackle size based on Green Pin G-4163 or equivalent)

The information provided is intended for product description only. Specifications are subject to change. Full product details available on request.
