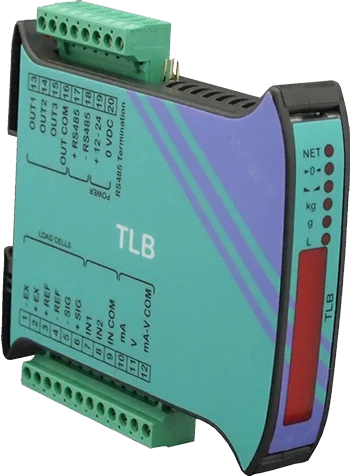

TLB

DIN rail mounting digital amplifier with analogue, data and relay outputs included as standard. Onboard digital display for visual load indication and easy setting and adjustment. Extremely cost effective compared with other devices providing this level of functionality.

Load Cell AmplifierTLB

Output



0-10V/4-20mA Analogue

RS485  Digital

Input Sensitivity 0.5 – 7 mV/V
Power Supply 12 – 24 Vdc ; 5W
Excitation 5 Vdc (120mA max.)
Logic Relay Outputs 115 Vac / 150mA max.
Conversion Rate 300 per second max.

Display Resolution

Output Resolution

999999 max.

16 bit

Thermal Drift <0.003 % Full Scale /°C
Operating Temp. -20°C to +60°C
Size

115 x 120 x 25 mm

DIN rail mounting

  • Universal Load Cell Amplifier
  • DIN Rail Mounting
  • Analogue & Digital Outputs
  • Logic Relay Outputs
  • Integral LED Display

Options :

  • DIN rail mounting 24Vdc Power Supply Unit
  • Supplied calibrated with any of our load cells

A versatile DIN rail mounting load cell amplifier/weight transmitter, providing all common analogue and digital process outputs for PLC or remote display.
Easy set-up, with wide input sensitivity range and digital calibration.
High stability with high interference immunity.
Can be supplied with DIN rail mounting 24Vdc PSU.

The information provided is intended for product description only.
Specifications are subject to change.
Full product details available on request.
