JNR

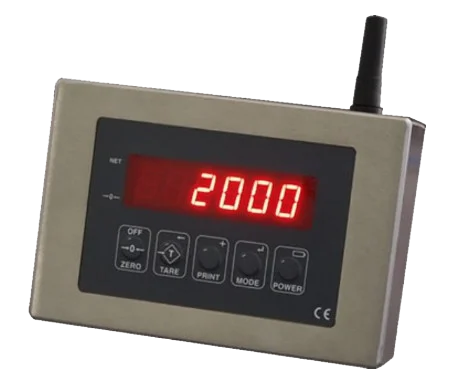

Robust and reliable indicator with analogue, data and relay output options for a multitude of weighing and industrial load measurements. Stainless steel housing and high visibility LED display, supplied with brackets for wall or bulkhead mounting. Wireless version available.

JNR

Power Supply Options 110-250 VAC
11-30 VDC
Internal rechargeable battery
Input Range 0.5 to 3mV/V
Load Cell Excitation 5VDC (120mA max.)
Accuracy ±0.01% range
Display 19999
Accuracy 6-digit 18mm LCD or LED
Thermal Stability 2ppm /°C
Dimensions 165 x 110 x 60 mm

Output Options:

– Digital

– Analogue

– Relay (opto-isolated)



RS232C

4-20mA / 0-10V

1 or 2 rated 100mA @ 24V

  • Load Cell Indicator
  • Stainless Steel Enclosure
  • High Visibility Display
  • Output Options Available
  • Wall / Bulkhead Mount

JNR features a stainless steel, splash proof sealed enclosure complete with mounting brackets suitable for industrial weighing applications.
Basic weighing functions: full range zero, preset tare, tare, weigh count, peak.
Power supply options include 110-250VAC, 11-30VDC or internal rechargeable battery.
Output and communication options available: RS232C to printer or computer, 4-20mA or 0-10vdc analogue output, opto-isolated relay output.
Wireless version available with transmitter or wireless load cell (enquire for details).

Specifications subject to change without notice.
