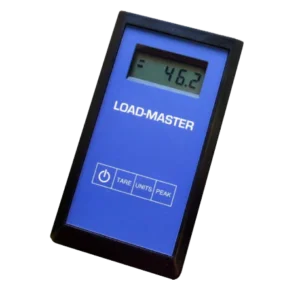

H100

Portable handset for basic load indicating. Features dual units and peak hold function with long battery life.

H100



H100

Display Units kg, Tonne, lbs, kN
Input Sensitivity 0.2 – 2.5 mV/V
Power Supply 1 x PP3 battery
Excitation 5 Vdc
Max. Display Counts 19999
Accuracy +/- 0.02 % of range
Environmental Sealing IP54 (to BS EN60529)
Temp. effect on span < 30 ppm/°C
Temp. effect on Zero 0.2 μV/°C
  • Portable Load Indicator
  • Battery Powered
  • Accepts All Load Cell Inputs
  • Display in kg, Tonnes, lbs, kN
  • Dual Units
  • Auto Shut-Off

Options :

  • Supplied calibrated with any of our load cells
  • RS232 output

The information provided is intended for product description only.

Specifications are subject to change.
Full product details available on request.
