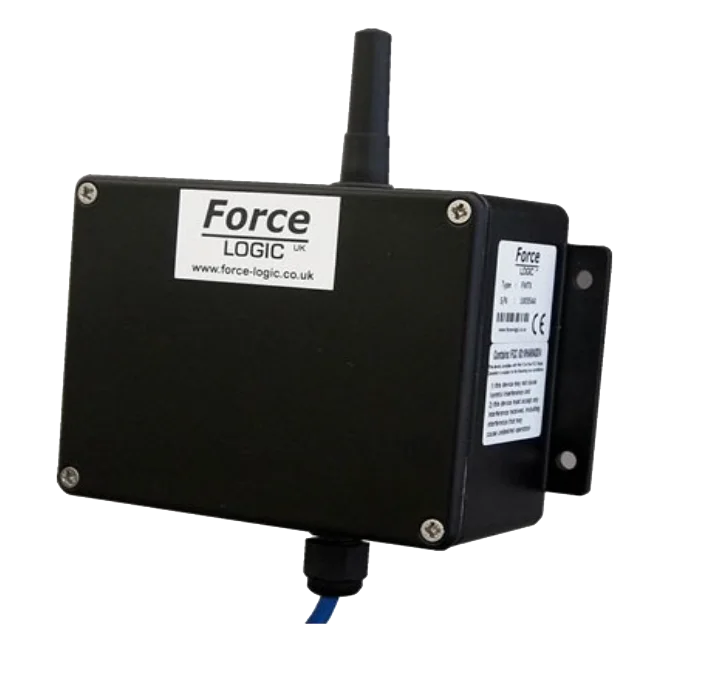

FMTX

FMTX provides wireless transmission of any load cell signal to our range of wireless weighing indicators/controllers. Eliminates long cable runs in new installations and allows wireless conversion of existing weighing systems. Powered by internal batteries or optional external 5VDC source and fully sealed for indoor or outdoor use.

Power Supply
– standard
– optional


3 x AAA (1.5V) Battery
External 5VDC Supply

Battery Life Up to 200 hours continuous
Input Range 0.5 to 3 mV/V
Load Cell Excitation 5VDC (100mA max.)
Accuracy ±0.01 % range
Radio Range Up to 200 M (direct sight)
Radio Frequency 433 MHz
Transmission Rate 500 mS
Dimensions (housing)
Dimensions (max.)
140 x 90 x 55 mm
140 x 200 x 55 mm
Environmental Sealing IP65
Specifications subject to change without notice.

  • Wireless Transmitter
  • 200M Range
  • Load Cell Transmitter
  • Long Battery Life
  • Remote on/off
