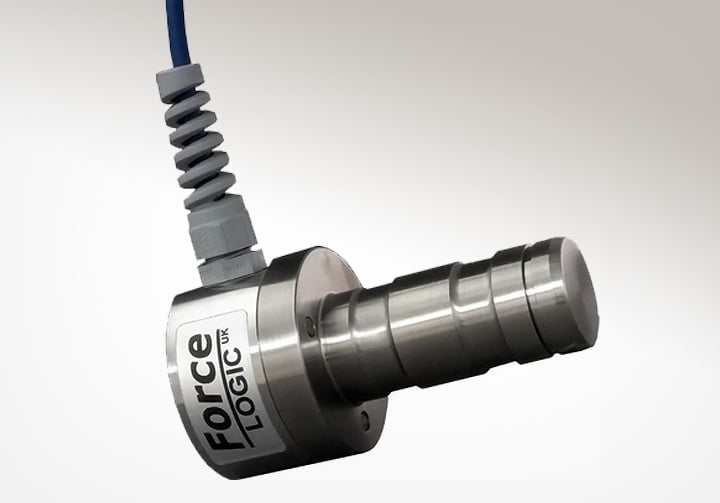

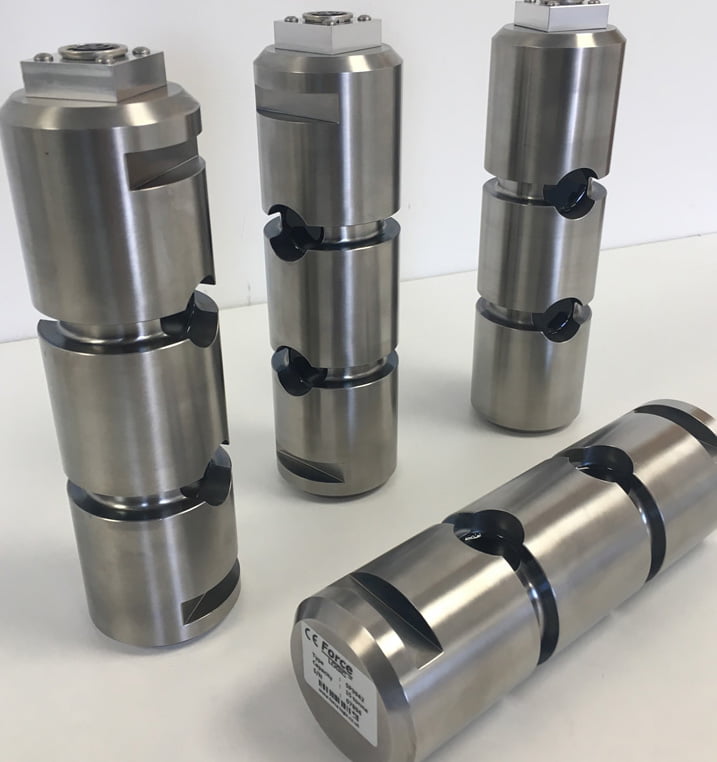

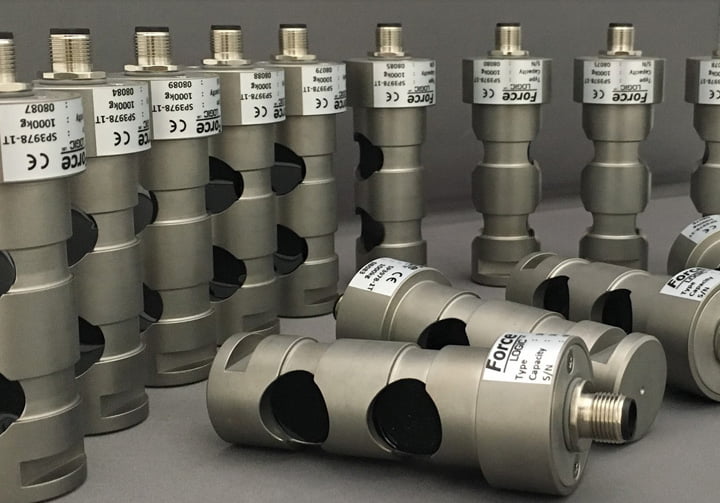

LOAD PINS

Load pins typically replace existing load bearing pins in static fixings and support structures, or axles supporting rotating parts. With known dimensions and load potential of the replaced component, load pins enable simple conversion to a load measurement system with little or no modification to the existing structure.

Although often limited in accuracy compared to most ‘inline’ load cells, they are suitable for low to medium accuracy measurement systems, commonly used for load limiting and overload protection in lifting and material handling equipment, with safety of people and machinery in mind.

Due to the huge variety of sizes and working loads required, Force Logic UK design and manufacture load pins to specific customer requirements, supplied with suitable electronics to fulfil any load indicating and control application.

Using our experience of custom designed products, we work with our customers to find the most suitable yet cost effective solution, for a single installation or to incorporate load measurement into their ongoing product supply.

Typical applications for our load pins:

Integrated load measurement in chain hoists
Trailer hitches
Wire rope sheave axles
Dead-end attachments of lifting systems
Crane load indication & control
Overload detection in machinery
Balance monitoring of access machines and platforms

Typical features and options:

Manufactured from high strength stainless steel
High safety factor
Redundancy output (dual output) for added security
Integral analogue or digital outputs
Wide variety of cable attachments & connectors
